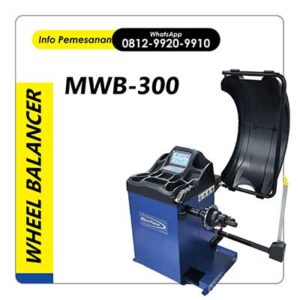

Wheels-Balancer-MWB-300

Alat Balancing Mobil MWB 300 RELIABLE REPEATABILITY

PRODUCT FEATURES

  • Real Plane Imaging technology to meet the market demand for independent tire shops and garages
  • Laser light-weight indicator accurately pinpoint the placement of adhesive weights on the wheel
  • Intuitive and easy to read LCD display

SOFTWARE FEATURES

  • Cycle start: Automatic after closing wheel guard
  • Balancing program selection: Manual
  • Spoke position detection: No
  • Multiple user capability: No
  • Stop in position: No
  • Laser weight pointer: Yes
  • Split weight: No
  • Optimization: Yes
  • Job counter: No
  • Network: No

WHEEL PARAMETER ENTRY

  • Diameter: Auto
  • Width: Auto
  • Offset: Auto

MAXIMUM WHEEL DIMENSIONS

  • Wheel diameter: 10” – 24”
  • Wheel width : 1.5” – 17”
  • Max. wheel weight: 65 Kg

STANDARD ACCESSORIES

  • Four cone set
  • Weight pliers
  • Measuring scale
  • Quick nut and spring

Deskripsi Produk

SPECIFICATIONS

Vehicles supported Car & light truck
Display Digital LED
Motor rating 200 w
Measuring speed 200 rpm
Balancing accuracy +/- 3 g
Start / stop time – check spin 8 sec
Noise < 85 dB
Working temperature -5 – 50 ºC
Diameter of shaft 40 mm
Main shaft lock Pedal
Wheel braking after measurement No
Power requirement  220-240V 1Ph 50/60Hz
